Creating a New File Search

Code Insight 2020 R4

Use either procedure to create a new file search:

• Create a File Search from Scratch
• Create a File Search from a Copy

Create a File Search from Scratch

Use this procedure to create a file search from scratch.

To create a new search from scratch, do the following:

1. Open the Analysis Workbench for the desired project. (For instructions, see Opening the Analysis Workbench.)
2. In the File Search Results pane, click Advanced Search. The Advanced File Search dialog appears.
3. Click Add New. The Create Filter dialog appears.
4. In the Name field, type a name for the search.
5. (Optional) In the Description field, type a description of the search. For example, type text that explains what the filter will search for.
6. Use this procedure to enter values in the Criteria fields. (For details about the available criteria, see Available Search Criteria for Building Codebase Filters.)
a. Select a criterion from the drop-down Select Search Field menu.

Note:Scanned remote files scanned remote files (that is, files scanned by a Code Insight scan-agent plugin on a remote system) can be searched on only the following fields: File Size, File Path, File Digest, Review Status, and Inventory Status.

b. If applicable, select a search operation (for example, Contains or =) and provide a search string or value.
c. To add another criterion, click Add Criteria, select a Boolean value to define how the criteria is applied, and repeat the previous steps to define the criterion. Repeat for each criterion added.
d. To add a group of criteria that serves as a criterion, click Add Criteria Group, and repeat steps a through c to create the group.

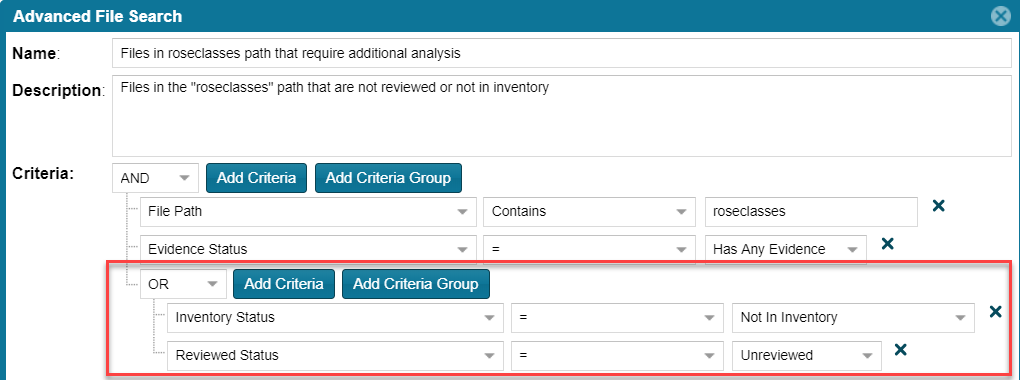

The following shows an example of a criteria group.

7. Determine how you want to proceed:
• Save—Save your search but do not execute it.
• Save and Search—Save your search filter and then execute it.
• Search without Saving—Execute the search without saving it.
• Cancel—Do not execute the search or save it.
