Configuring the Code Insight Windows Service

Code Insight 6.14.2

This chapter explains how configure Code Insight to run as a Windows service.

To configure the Code Insight Windows service, do the following:

1.

Stop the Tomcat server.

2.

Using the command prompt, navigate to <CODE_INSIGHT_ROOT_DIR>\tomcat\bin.

3.

Execute the service.bat install command to install the Apache Tomcat Windows service.

4.

Run <CODE_INSIGHT__ROOT_DIR>\tomcat\bin\tomcat7w.exe.

5.

Select the Log On tab:

6.

Enter the user for which the Apache Tomcat Windows service will run.

7.

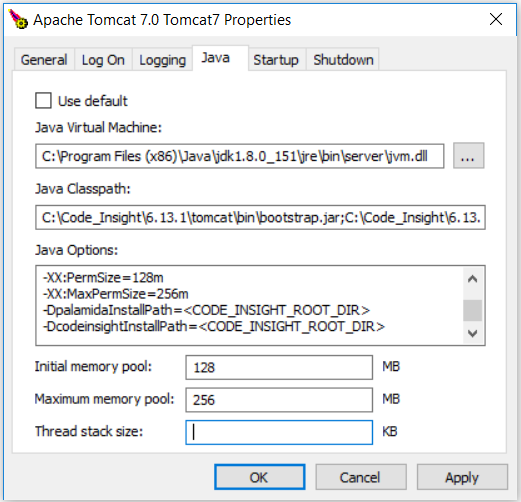

Select the Java tab:

8.

In the Java Options text area, append the following lines and make sure that there are no trailing spaces:

Option	Description
-XX:PermSize=128m	Set to appropriate value for your system.
-XX:MaxPermSize=256m	Set to appropriate value for your system.
-Dpalamida.ssl=true	Only required to enable HTTPS (SSL); not required otherwise.
‑DpalamidaInstallPath=<CODE_INSIGHT_ROOT_DIR>	Set to your Code Insight root directory, such as C:\Code_Insight\6.x.
-DcodeinsightInstallPath=<CODE_INSIGHT_ROOT_DIR>	Set to your Code Insight root directory, such as C:\Code_Insight\6.x.

9.

Modify the Initial memory pool value to 256 MB.

10.

Modify the Maximum memory pool value to 12288 MB.

Note:Set the maximum memory pool no higher than 80% of your available memory.

11.

Click Apply.

12.

Start the Tomcat server.
