Viewing Evidence

Code Insight 6.14.2

After you open a workspace, you can view the tabs in the upper panel of Detector. They are named according to the types of information you can access via the scan.

To view different types of evidence, do the following:

1.

Double-click a row in any table within the top tabs; this action filters the file tree to only those files corresponding to the data in the selected table row.

2.

Select a row in any table within the top tabs; and then click the More Information button () to view more information about the current row in a popup window.

3.

Click the Add button () to add a new data element or click the Delete button () to delete the currently selected element. The lower right panel in Detector contains detailed information about the selected node in the file tree.

Note:These buttons are enabled only if additions or deletions are permitted.

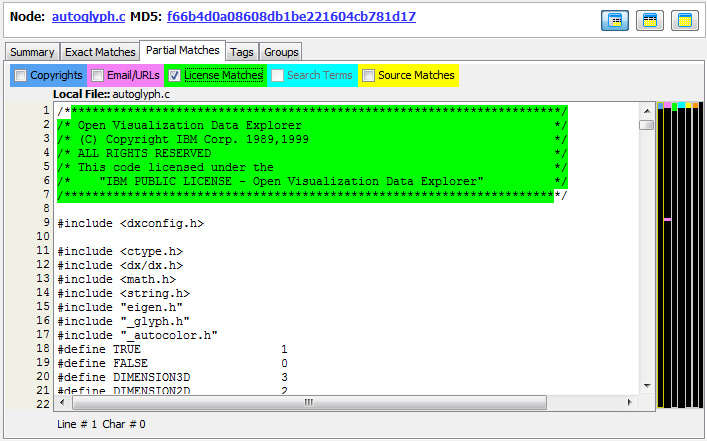

The header above the lower-right panel contains summary information about the currently selected node in the file tree and hyperlinks to a search engine for the file name and its MD5 checksum.
