Technical Architecture Overview

Code Insight 6.14.2 SP1

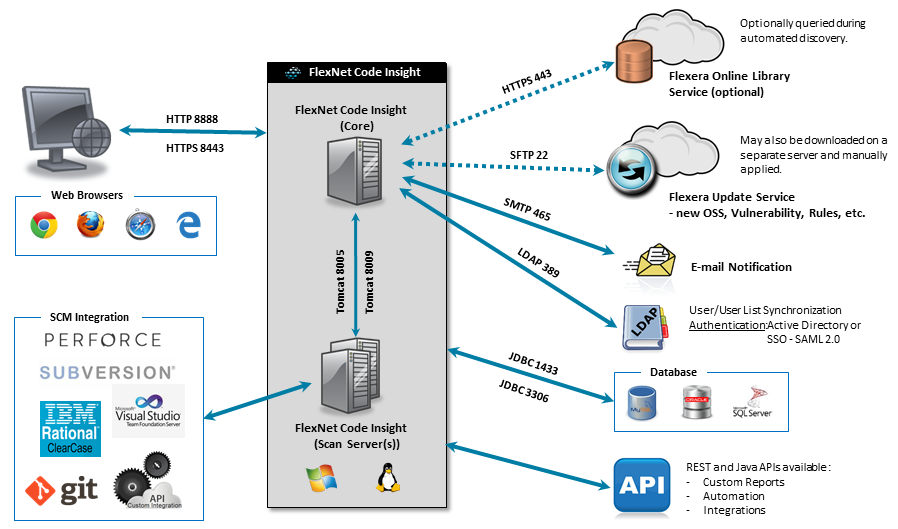

The following diagram shows how the various clients work in conjunction with the workspaces, databases, and the Code Insight application. Code Insight implements the code management workflow on top of inventory detection, analysis, and generation capabilities.
