License Server Manager Information and Settings
The top menu item is the License Manage Configuration group, which contains the Settings and About views. The About view (not pictured) displays build, system, and browser information. In the Settings view, you specify the port number and host name (network name or IP address) for the license server, as well as the number of records to show on a page. These configuration settings appear in a separate list because they can be modified even if the license server is inaccessible, unlike the license server policy settings and configuration properties.
The default port for the license server is 7070.

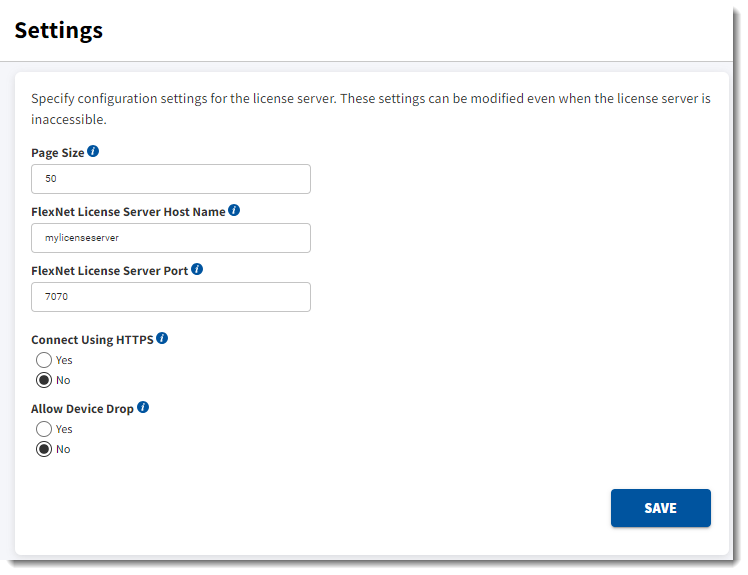

Settings view for License Server Manager
The properties available in this view include:
|
•
|
Page size—The number of records to display per page |
|
•
|
FlexNet License Server Host Name—The hostname of the machine the license server is running. |
|
•
|
FlexNet License Server Listen Port—The port number for the license server. (The default port for the server is 7070.) |
|
•
|
Connect Using HTTPS—The option indicating which protocol—HTTP or HTTPS—must be used for FlexNet License Server Manager communications with the license server: |
|
•
|
Yes—Use HTTPS communications. |
|
•
|
No—Use HTTP communications. |
