Features View

The Features view displays all the features installed on the license server.

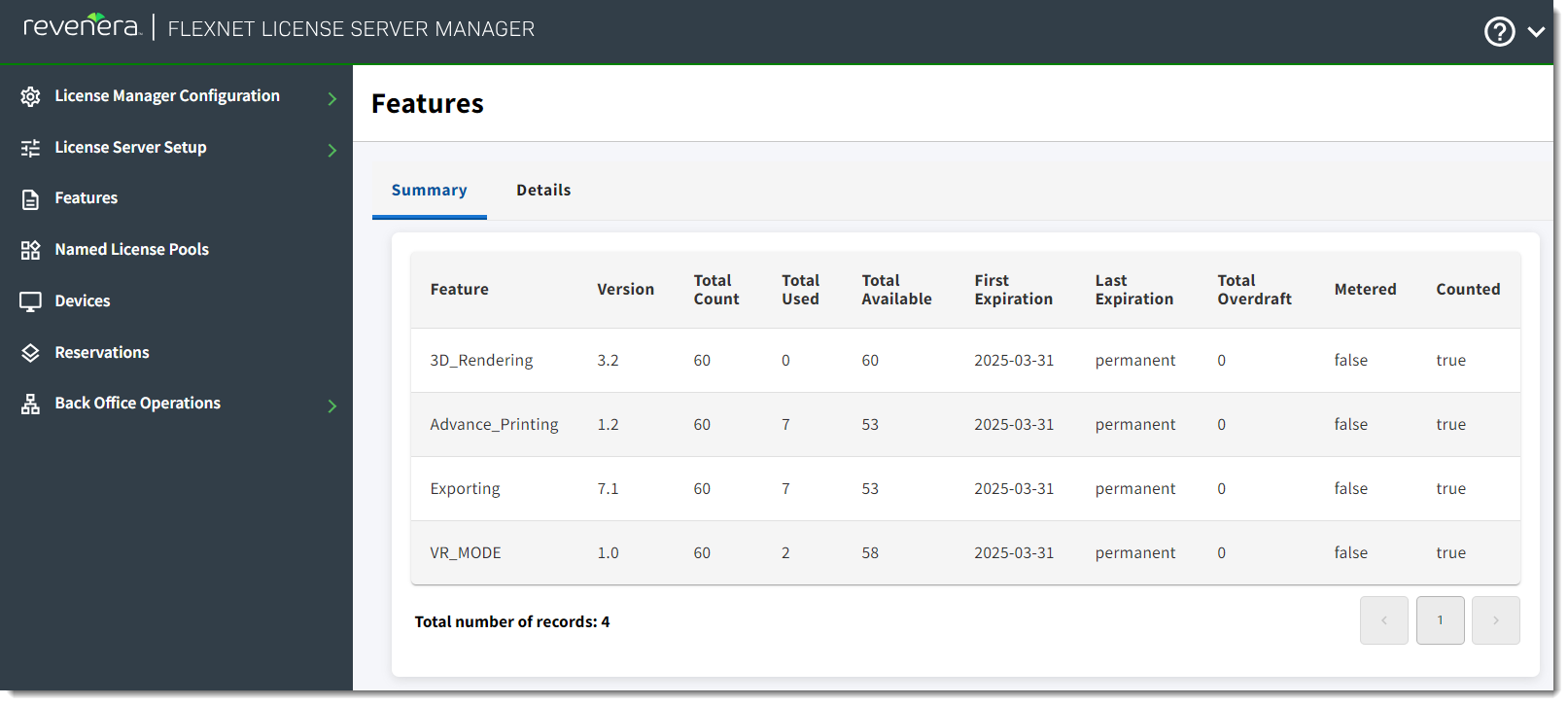

Features view

Switch to the Details tab to see further information about each feature. If the list of features is extensive, you can use the navigation tool to locate records, as described in Page Navigation for Views in the License Server Manager. You can also search for a specific feature by entering its name in the Search field and then clicking the “magnifying glass” icon. (Provide the exact and complete feature name for the search string.)

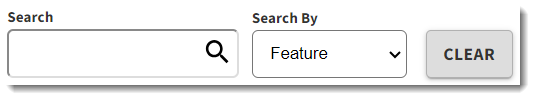

Search tool for features

When you click a feature name, the Feature Details page is displayed, containing detailed information about the feature, including the feature start date, the total count allocated to the server, the count currently being used, the number of reserved licenses within the used count, and any feature selectors and vendor string information defined for the feature.

This page also shows a Served Info section, listing the client devices that currently have the feature’s counts checked out.

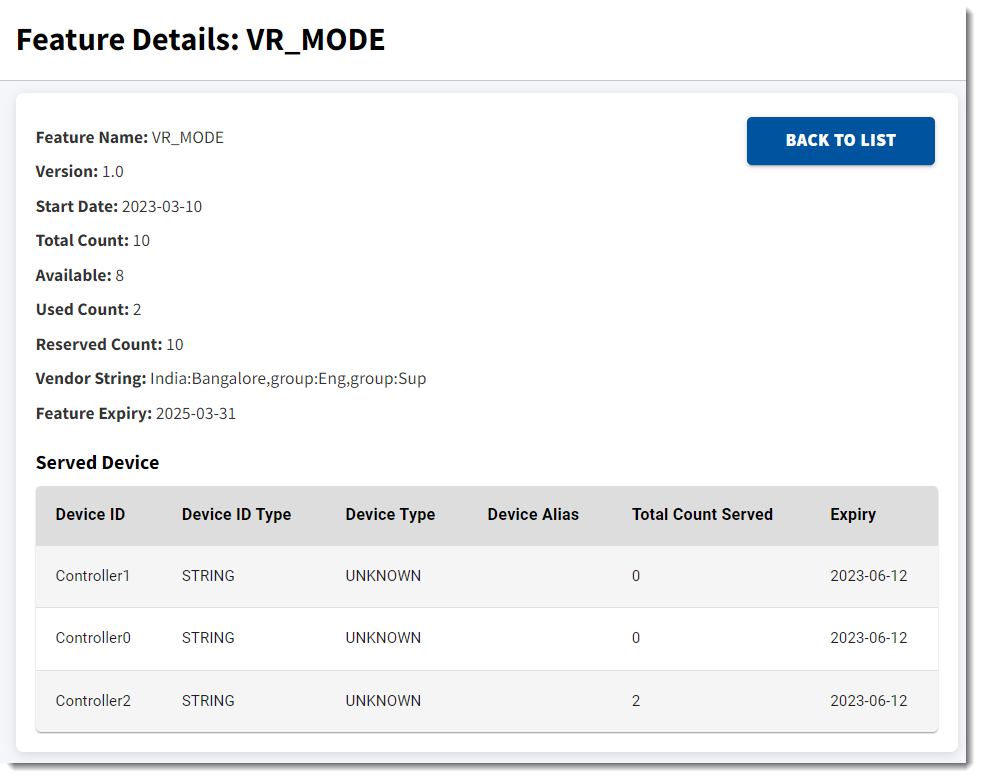

Feature Details page
