Accessing lmadmin License Server Manager as a Windows Service with a Three-Server Configuration

The license server management interface has two modes of operation—Standard mode and Section 508 mode. Either mode is accessible from a supported Web browser. See System Requirements for lmadmin for a list of supported Web browsers.

Make sure that you have started the license server.

Open the Web browser and browse to one of the following URLs:

•

Standard mode—This is the standard license server management interface:

http://<Master node>:8090

where <master node> is the IP address or host name of the current master node.

•

Section 508 mode—Section 508 mode provides access to people with disabilities and has the same capabilities that are available in Standard mode:

http://<Master node>:8090/login508

where <Master node> is the IP address or host name of the current master node.

For more information on Three-Server Redundancy, refer to the section {Hyperlink}Overview of Three-Server Redundancy{Default ¹ Font} on page {Hyperlink}1{Default ¹ Font}.

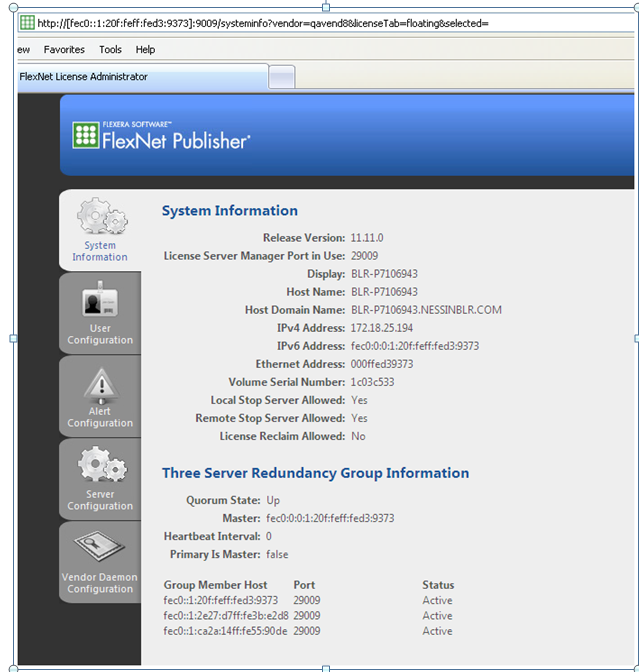

Below is a sample output of the lmadmin GUI for Three-Server Redundancy:

lmadmin Three-Server Redundancy
