Setup Progress Dialog

InstallShield 2013 Express Edition

The Setup Progress dialog enables you to display all the actions—such as file transfer—taking place during your installation. This dialog is not required.

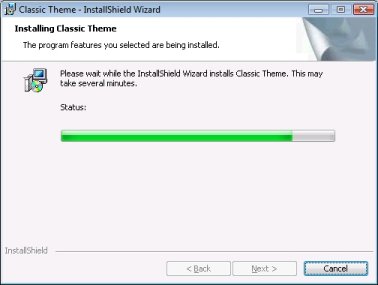

Setup Progress Dialog with Classic Theme

Setup Progress Dialog with InstallShield Blue Theme

Customizing the Dialog

You can customize this dialog by editing its settings. These settings appear to the right of the Dialogs explorer when you select the Setup Progress dialog. The Setup Progress dialog has the following settings:

Setup Progress Dialog Settings
Setting	Description
Banner Bitmap	Enter the path and name of the image file (.bmp or .jpg) that you want to use for this dialog’s banner (across the top of the dialog), or click the ellipsis button (...) to browse to the file. The image must be 499 pixels wide by 58 pixels high.
Show Progress Bar	Specify whether you want this dialog to include a progress bar. The progress bar gives end users a visual indication of how much of the total installation process has completed and how much is still remaining.
