Adding New Licenses to Components

Code Insight 6.14.2 SP1

Before you can add or associate a license with a component, you have to create that license. See Creating a New License for more information.

To add a license to a component, do as follows:

1.

Click the Research button on the Main menu bar. The Research page appears.

2.

Select the Components tab.

3.

In the Search field, enter the name of the component with which the license is associated and click the magnifying glass icon.

4.

Locate the component to which you wish to add a license, and click the left-hand Plus icon to expand the component description.

5.

Click the Manage Licenses button. The license associated with the component appears.

6.

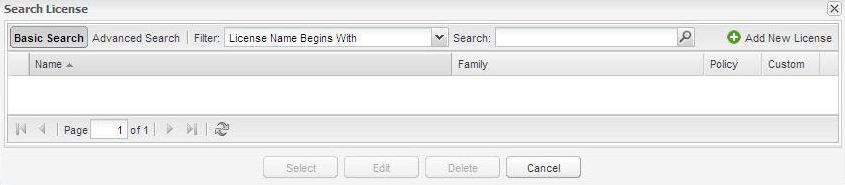

In the License Details for that particular component, click the Add New Component icon to add a new license. The Search License dialog appears.

7.

Select the desired license to add. You can also edit or delete a license by using the buttons at the bottom of the Search License dialog, or you can create a new license if one does not exist.

Note:The Add License button adds an existing license to the license list. The Add New License button opens a dialog to create a new license, which can be added to the list.
