Data Flow and Refresh Frequency for Data Analytics

The Analytics Dashboard and reports present data from the FlexNet Operations Data Warehouse. The data fetched from the Data Warehouse is refreshed every four hours (see Data Refresh Frequency Overview for details, below).

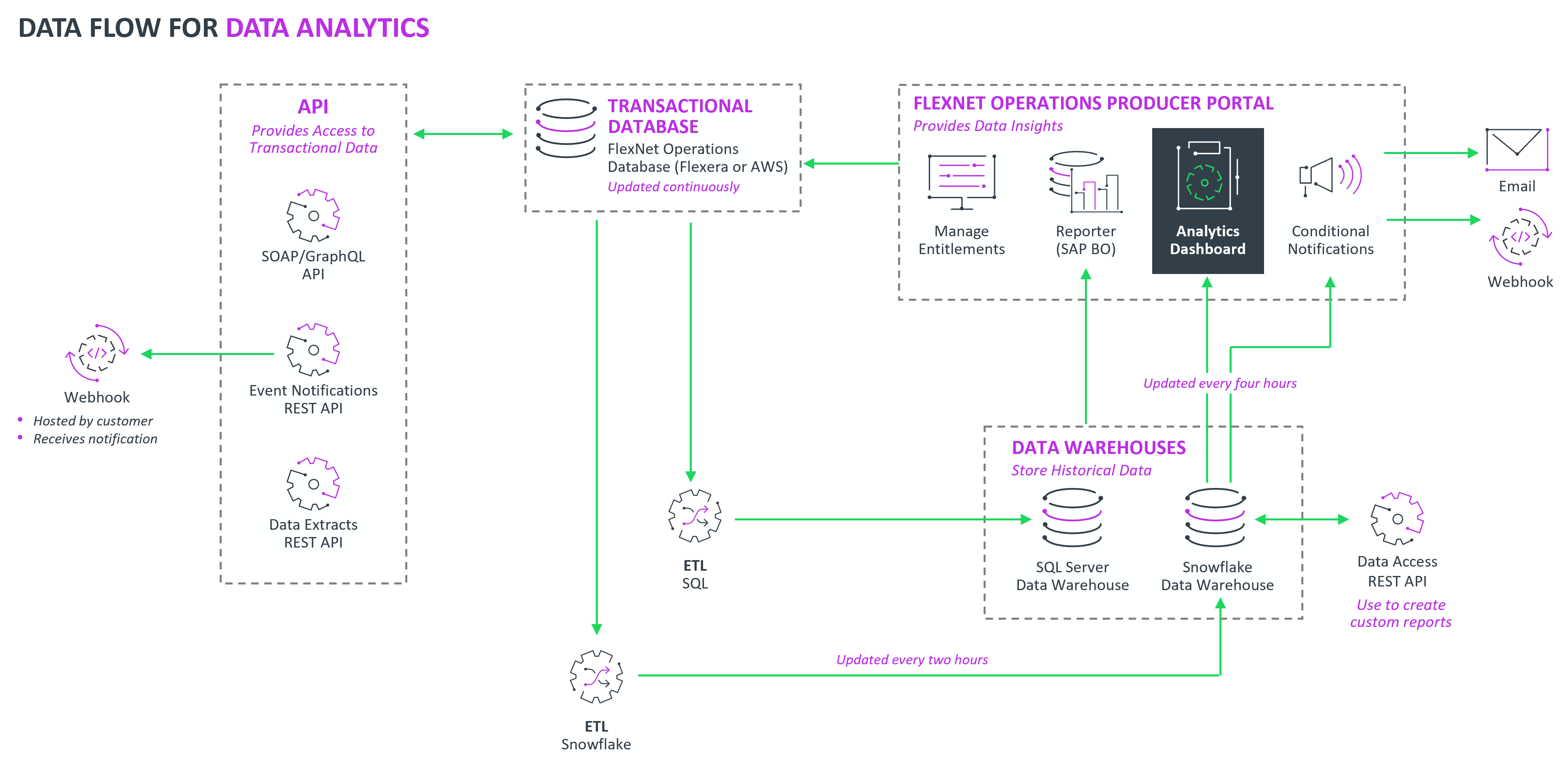

The following diagram shows the data flow from the Data Warehouse for the Analytics Dashboard and reports.

Data flow for data analytics

Data Refresh Frequency Overview

The Data Access API, Datashare and Analytics Layer are refreshed on an approximate 3-hour cycle, following data ingestion and consolidation in the Data Warehouse.
